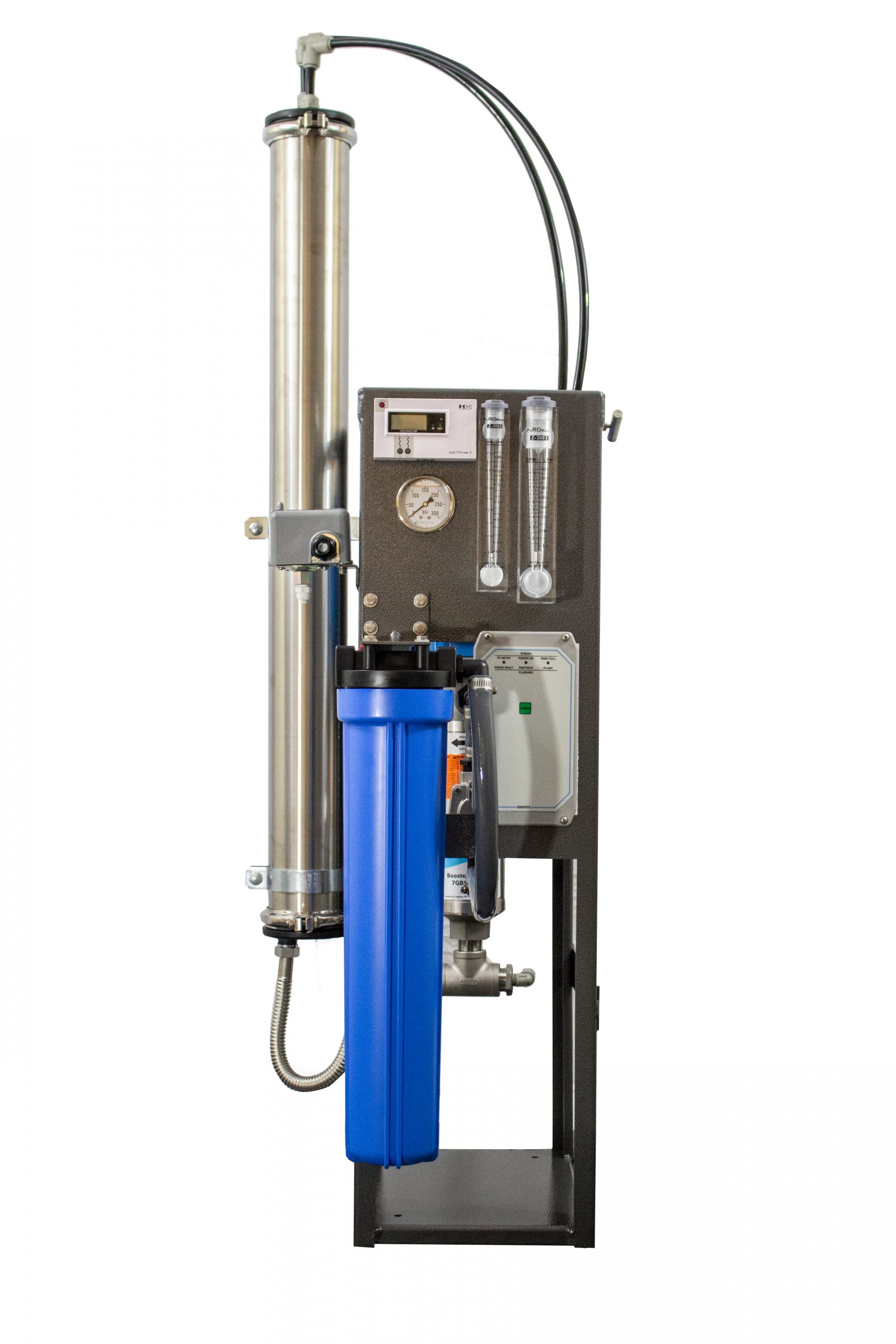

Single Membrane Industrial Reverse Osmosis Units



Standard Features

  • NSF Certified Membrane on LP-2800
  • Stainless Steel Membrane Housing
  • Gould’s Multi Stage SS Centrifugal Pump
  • TDS Monitor for Product and Feed
  • Low Pressure Safety Cut Off
  • Product and Drain Flow Meters
  • Stainless Steel Drain Valve
  • 2″ x 20″ Sediment Pre Filter
  • Inlet Solenoid Valve
  • SS Operating Pressure Gauge
  • Comprehensive Warranty
  • Easy to Install and Maintain
  • Aluminum Frame

Low Pressure Units are based on 500 ppm properly pre-treated water at 115 psig operating pressure and 77degree water.

High Pressure Units are based on 2000 ppm properly pre-treated water at 225 psig operating pressure and 77degree water.

[pi_enquiry_button]
Facebook
Twitter
LinkedIn

Description

Optional Features

  • Auto Flush
  • Waste Recycle
  • Pre Filter Gauge
  • Control Panel
  • Crating
  • Powder Coating (Custom Colors)

Unit Options & Specifications

Unit LP-2800 HP-2200
Membrane sizePart # 1 4×40 low pressurePM-4040-BLF 1 4×40 high pressurePM-4040-BE
GPD 2800 2200
Production GPM 2 1.52
Rejection GPM 6 3.48
Total GPM 8 5
Recovery 25% 30%
Operating PSI 115 225
Motor Horse Power .5 1
Volts 115/230 115/230
Amps 10.8/5.4 16.2/8.1
Connection Feed 3/4” 3/4”
Connection Product 1/2” 1/2”
Pump Model 7GBS05FS 7GBS10FS
Pre-Filter Size 2×20 2×20
Dimensions WxDxH 18x23x55 18x23x55
Approximate Unit Weight 120 lbs. 120 lbs.
